DIY 1176

<div style=”padding: 20px; font-family: sans-serif; color: #333; line-height: 1.6;”>

  <h2 style=”text-align: center; font-size: 24px; color: #111; margin-bottom: 16px;”>

    ⚡ Build Your Own Classic FET Limiter

  </h2>

  <p style=”text-align: center; font-size: 16px;”>

    Inspired by the legendary <strong>1176 compressor</strong>, this DIY kit delivers fast attack, bold character, and that unmistakable punch that has shaped music history for over 50 years. The design sticks to the original topology, but with modern, builder-friendly components. Everything you need to capture that raw, aggressive sonic magic—it’s all in the box.

  </p>

  <p style=”text-align: center; font-size: 16px;”>

    There’s a special kind of satisfaction in building a piece of gear trusted by producers and engineers worldwide. From snapping snares to commanding vocal presence, the 1176 is all about <strong>attitude and control</strong>. Fire it up, run some audio, and you’ll instantly recognize that tight, forward, unapologetically analog tone. This isn’t just another tool—it’s <em>the</em> tool.

  </p>

  <h3 style=”text-align: center; font-size: 18px; color: #555; margin-top: 24px;”>

    🧰 Designed for DIYers with a Passion for Tone

  </h3>

  <p style=”text-align: center; font-size: 16px;”>

    If you’ve got basic soldering skills and a bit of patience, this build is for you. With clearly written docs and a curated bill of materials, the process is smooth and rewarding. Whether you’re kicking off your analog journey or expanding your studio’s firepower, this kit isn’t just a project—it’s a rite of passage for serious audio heads.

  </p>

</div>

<hr />

<div style=”border: 1px solid #ccc; border-radius: 8px; padding: 20px; font-family: sans-serif;”>

<h2 style=”margin-top: 0; margin-bottom: 16px;”>📥 Downloads &amp; Resources</h2>

<ul style=”list-style: none; padding-left: 0; font-size: 16px; line-height: 1.8; margin: 0;”>

  <li>🔧 <a href=”https://honeybadgeraudio.com/wp-content/uploads/2025/07/1176-D-BOM.xlsx” target=”_blank” rel=”noopener” style=”color: #333; text-decoration: none;”>Bill of Materials (BOM)</a></li>

  <li>🧠 <a href=”https://honeybadgeraudio.com/wp-content/uploads/2025/07/Schematic_1176-Rev-D-NO-PSU_2025-07-08.pdf” target=”_blank” rel=”noopener” style=”color: #333; text-decoration: none;”>Schematic Diagram (1176 Limiter)</a></li>

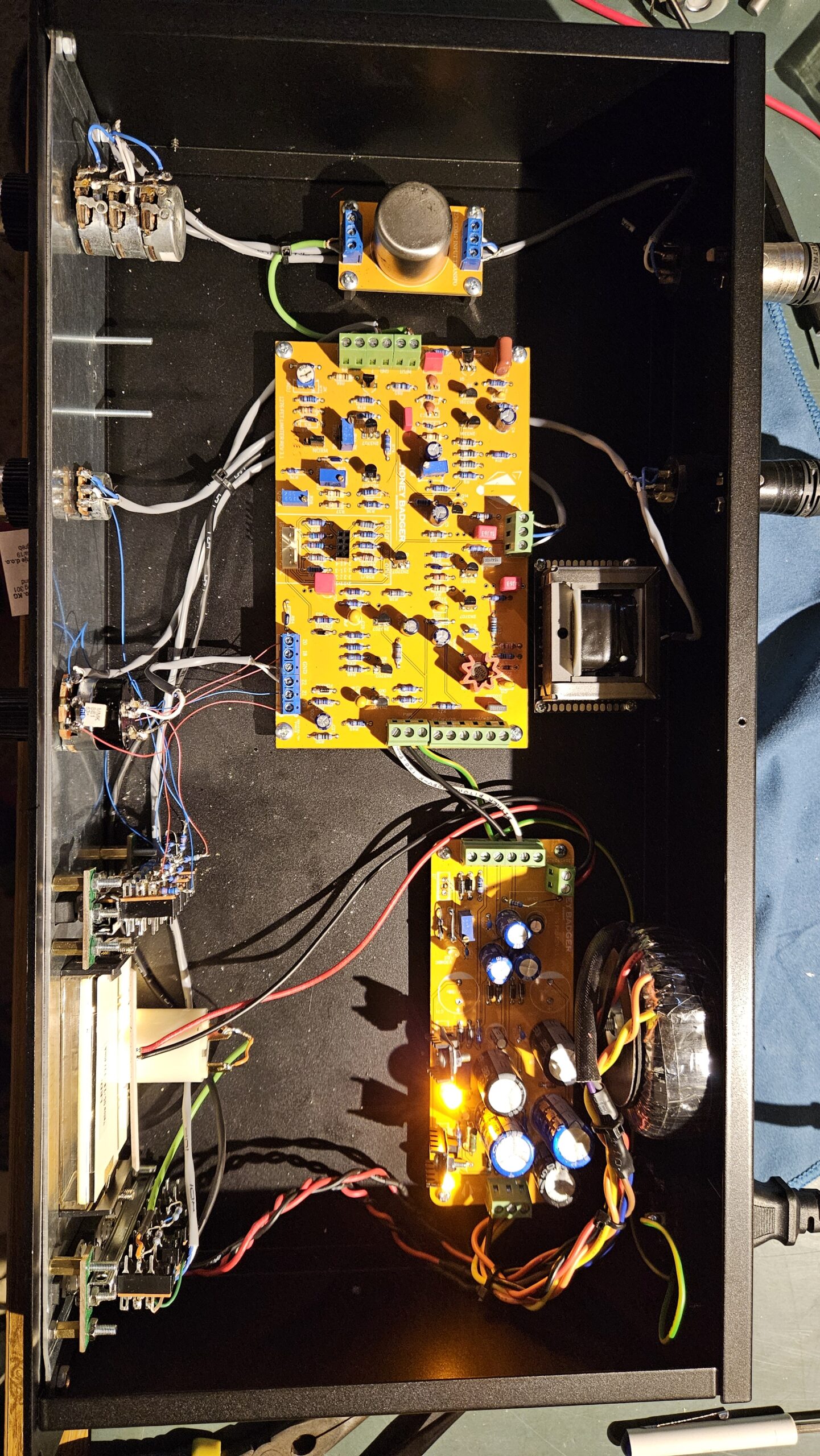

  <li>🖼️ <a href=”https://honeybadgeraudio.com/wp-content/uploads/2017/02/20250410_234310-scaled.jpg” target=”_blank” rel=”noopener” style=”color: #333; text-decoration: none;”>Completed Build Reference Image</a></li>

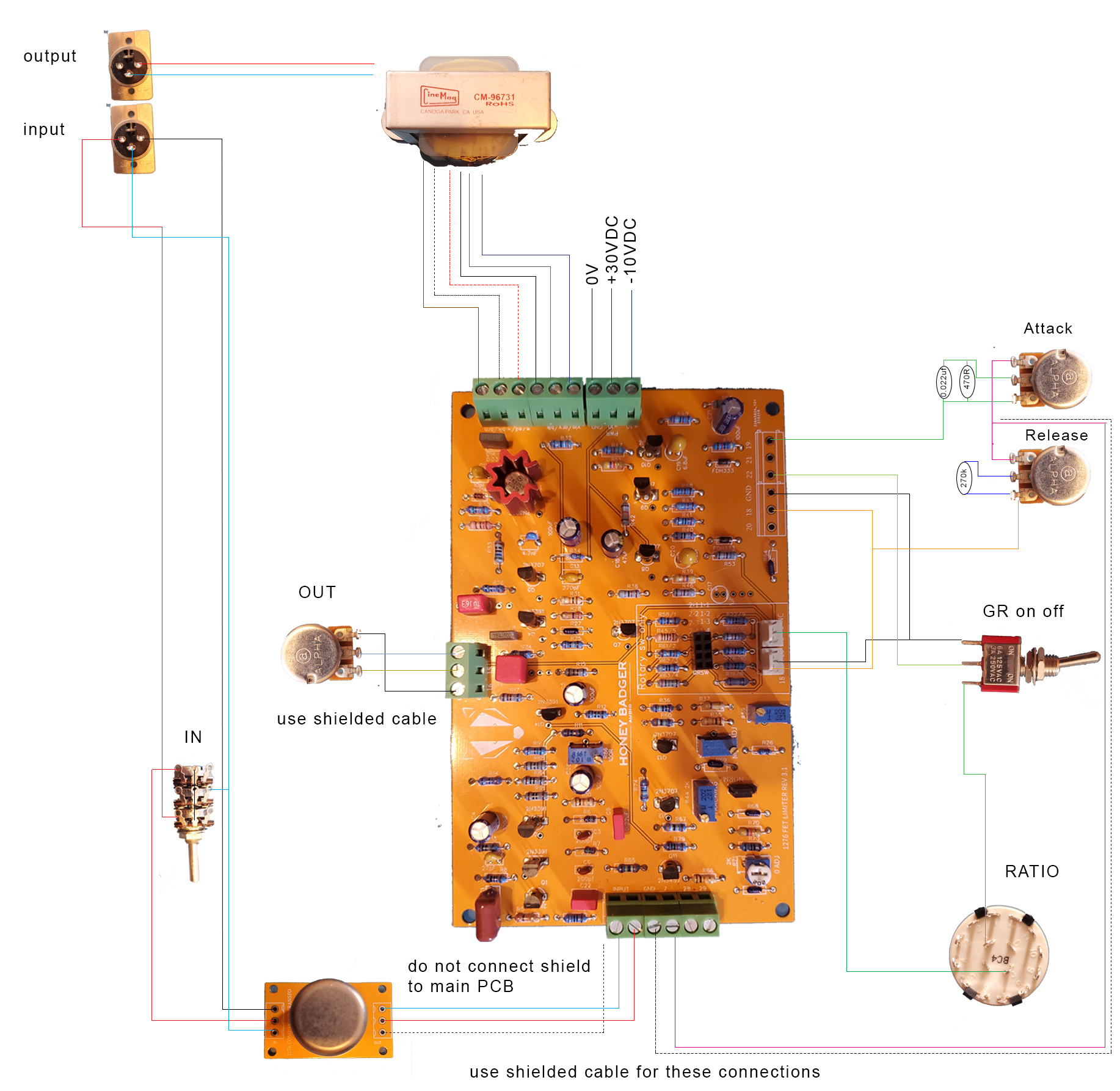

  <li>⚡ <a href=”https://honeybadgeraudio.com/wp-content/uploads/2025/07/1176-wiring.jpg” target=”_blank” rel=”noopener” style=”color: #333; text-decoration: none;”>Wiring Diagram (Hi-Res)</a></li>

</ul>

<!– Complete Kit Column –>

<td style=”vertical-align: top; width: 50%;”>

<h3>✅ Complete Parts Kit</h3>

<ul style=”list-style: none; padding-left: 0;”>

  <li><input type=”checkbox” checked=”checked” /> All resistors</li>

  <li><input type=”checkbox” checked=”checked” /> All film capacitors</li>

  <li><input type=”checkbox” checked=”checked” /> All electrolytic capacitors</li>

  <li><input type=”checkbox” checked=”checked” /> All diodes</li>

  <li><input type=”checkbox” checked=”checked” /> All screw terminals</li>

  <li><input type=”checkbox” checked=”checked” /> All transistors</li>

  <li><input type=”checkbox” checked=”checked” /> 2x Matched 2n5457 FET transistors</li>

  <li><input type=”checkbox” checked=”checked” /> 1x High output transistor</li>

  <li><input type=”checkbox” checked=”checked” /> Molex connectors</li>

  <li><input type=”checkbox” checked=”checked” /> Molex crimp terminals</li>

  <li><input type=”checkbox” checked=”checked” /> 1x T-Pad attenuator</li>

  <li><input type=”checkbox” checked=”checked” /> 1x 250k potentiometer</li>

  <li><input type=”checkbox” checked=”checked” /> 1x 25k potentiometer with SPDT switch</li>

  <li><input type=”checkbox” checked=”checked” /> 2x Piano switches with caps</li>

  <li><input type=”checkbox” checked=”checked” /> VU meter with bezel</li>

  <li><input type=”checkbox” checked=”checked” /> 2x large skirted Original Style 1176 knobs</li>

  <li><input type=”checkbox” checked=”checked” /> 2x small Original Style 1176 knobs</li>

  <li><input type=”checkbox” checked=”checked” /> 1176 PCB</li>

  <li><input type=”checkbox” checked=”checked” /> 10mm standoffs</li>

  <li><input type=”checkbox” checked=”checked” /> 8x 3mm screws</li>

  <li><input type=”checkbox” checked=”checked” /> 250cm audio cable</li>

</ul>

</td>

</tr>

</tbody>

</table>
